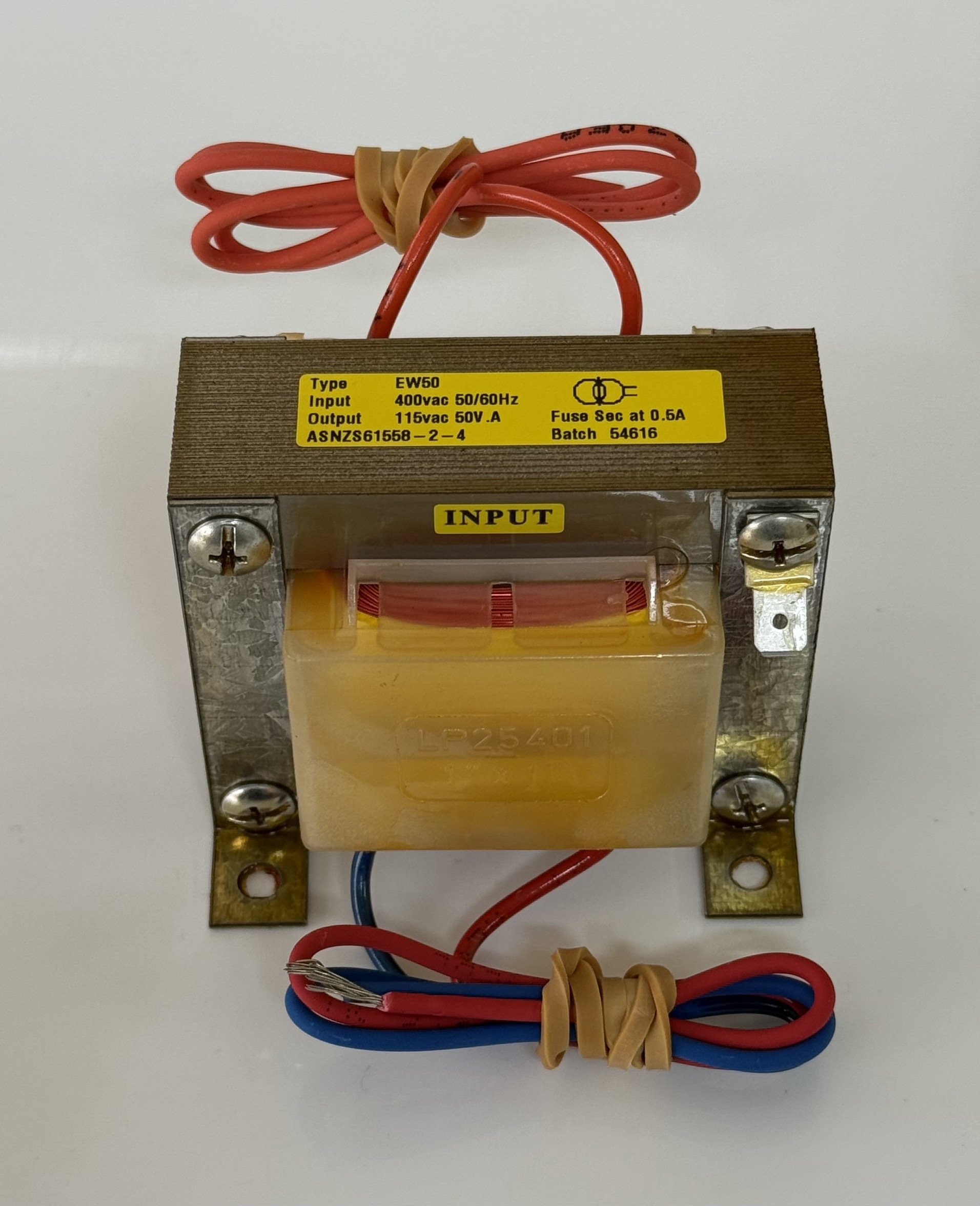

EW50 (400vac/115vac, 0.44A, 50V.A)

$ 112.00

Trade price New Zealand dollars + GST

EW isolating

  • Intended applications: Fixed associated control & power transformers.
  • Classification: Class 1, isolating non-short circuit proof.
  • Protection: External short-circuit / overload protection required.
  • Construction: Open frame IP00.
  • Connections: Primary input flying leads / secondary output flying leads.
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 61558.2.4 (IEC 61558.2.4).
  • Dimensions: h. 64mm, w. 78mm, d. 60mm, 1.0kg
  • DIN rail (symmetrical 35mm) mounting version available add prefix “DIN” to the product code when ordering i.e EW**DIN
  • New “L” bracketed mounting arrangement – orientation rotated 90° giving a lower profile & improved access to the mounting holes, includes an integrated 6.3mm Earth tab.
SKU: EW50 Category:
