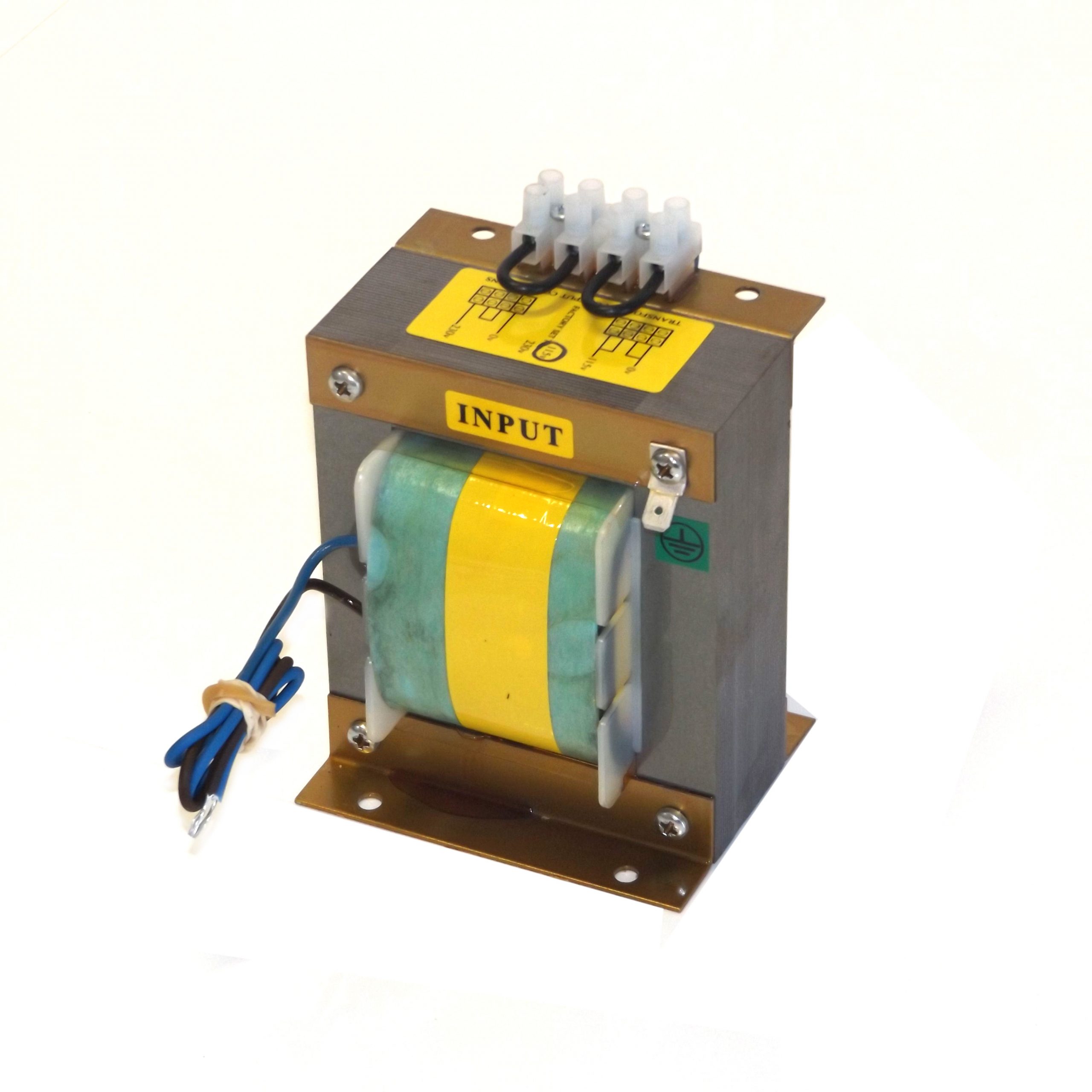

PX34 (400vac/115vac 2.61A or 230vac 1.30A, 300V.A)

$ 281.00

Trade price New Zealand dollars + GST

PX isolating

  • Intended applications: Fixed associated control & power transformers.
  • Classification: Class 1, isolating non-short circuit proof.
  • Protection: External short-circuit / overload protection required.
  • Construction: Open frame IP00.
  • Connections: Primary input flying leads / secondary terminals.
  • Dual secondary output windings: Parallel 115vac or series 230vac
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 61558.2.4 (IEC 61558.2.4).
  • Dimensions: h. 135mm, w. 96mm, d. 110mm, 4.2kg

Additional information

Weight 4.2 kg
Dimensions 110 x 96 x 135 mm

SDoC PX34-2015.pdf
