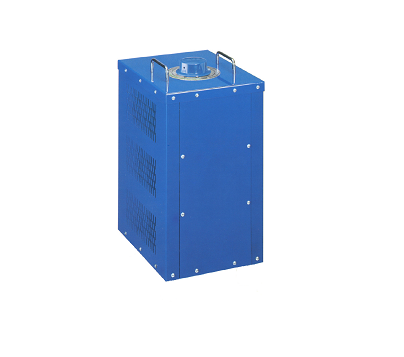

VT3400005 (400vac/0 ~ 430vac, 5A)

Out of stock

VT auto

  • Intended applications: Variable transformer, “variac”.
  • Classification: Three phase, class 1, auto non-short circuit proof.
  • Protection: External short-circuit / overload protection required.
  • Construction: Enclosed metal vented IP40, epoxy powder coated.
  • Connections: Primary input terminals / secondary output terminals.
  • Secondary output continuously variable 0 to 430vac between phases (VL)
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: IEC 61558.2.13
  • Dimensions: H. 530mm, L. 280mm, W. 220mm, 28kg

Description

Non stock indent item – Contact sales@tsltransformers.co.nz for pricing and availability

Additional information

Weight 28 kg
Dimensions 220 × 280 × 530 mm
