ISA0120012 (230vac/12vac 1.0A, 12V.A)

$ 65.00

Trade price New Zealand dollars + GST

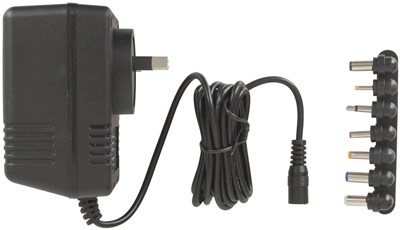

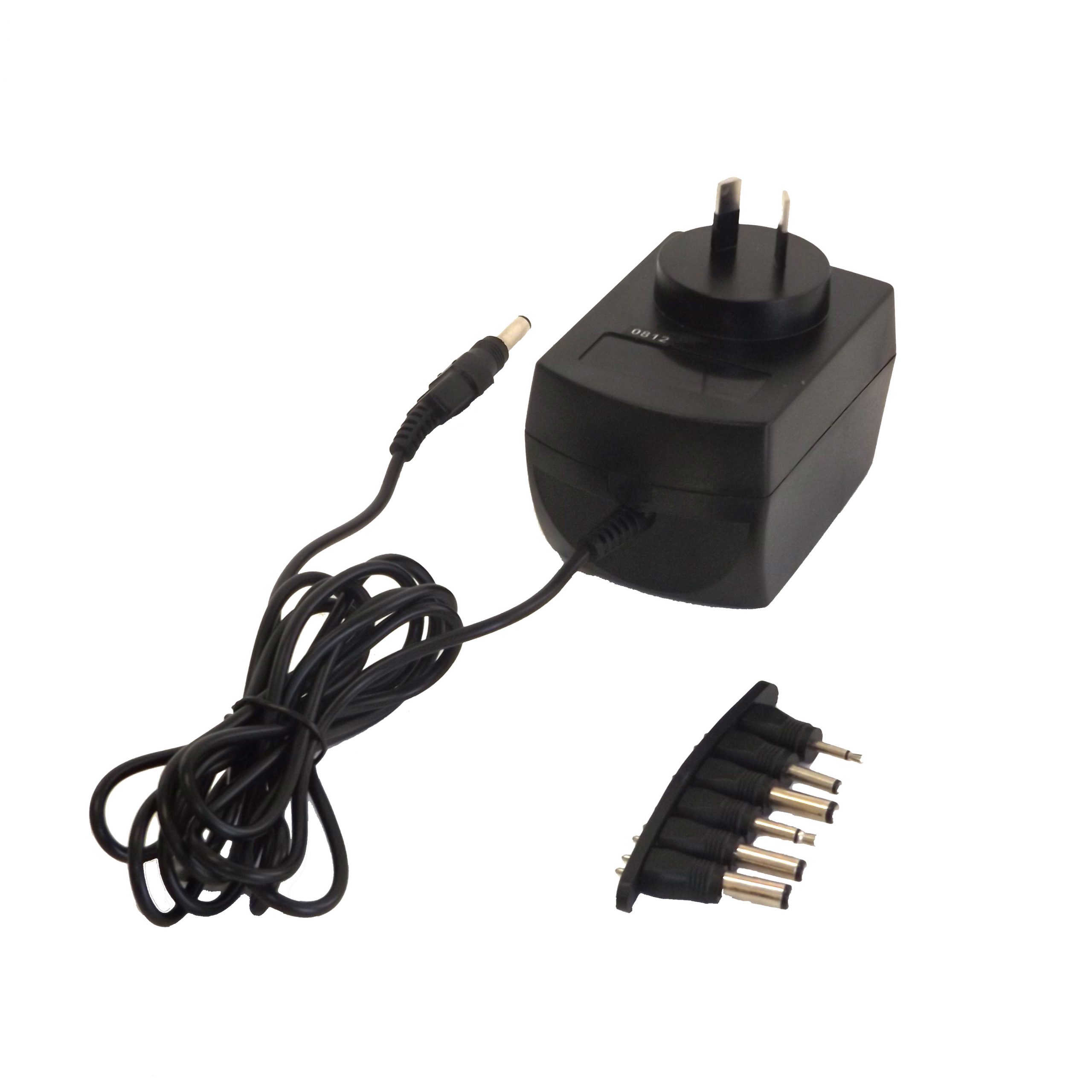

IS ac-ac plugpack

  • Intended applications: Plug-pack appliance transformers.
  • Classification: Class II, safety isolating short circuit proof.
  • Protection: Primary thermal fuse fitted.
  • Construction: Wall mounting plug-pack, ABS plastic IP40
  • Input: NZ / AU standard mains power point connecting.

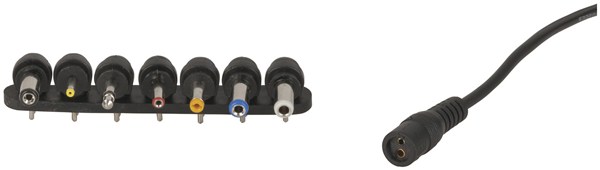

  • Output: Interchangable ELV plugs including ID 1.3 * OD 3.5mm, ID 1.5 * OD 5.9mm, ID 2.1 * OD 5mm, ID 2.1 * OD 5.5mm, ID 2.5 * OD 5mm.
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 61558.2.6 (IEC 61558.2.6).
  • Dimensions: h. 60mm, w. 75mm, d. 55mm, 0.3kg
SKU: ISA0120012 Category:

Additional information

Weight 0.30 kg
Dimensions 55 x 75 x 60 mm

SDoC ISA0120012-2015.pdf
