VT1230005 (230vac/0 ~ 250vac, 5A)

Out of stock

VT auto

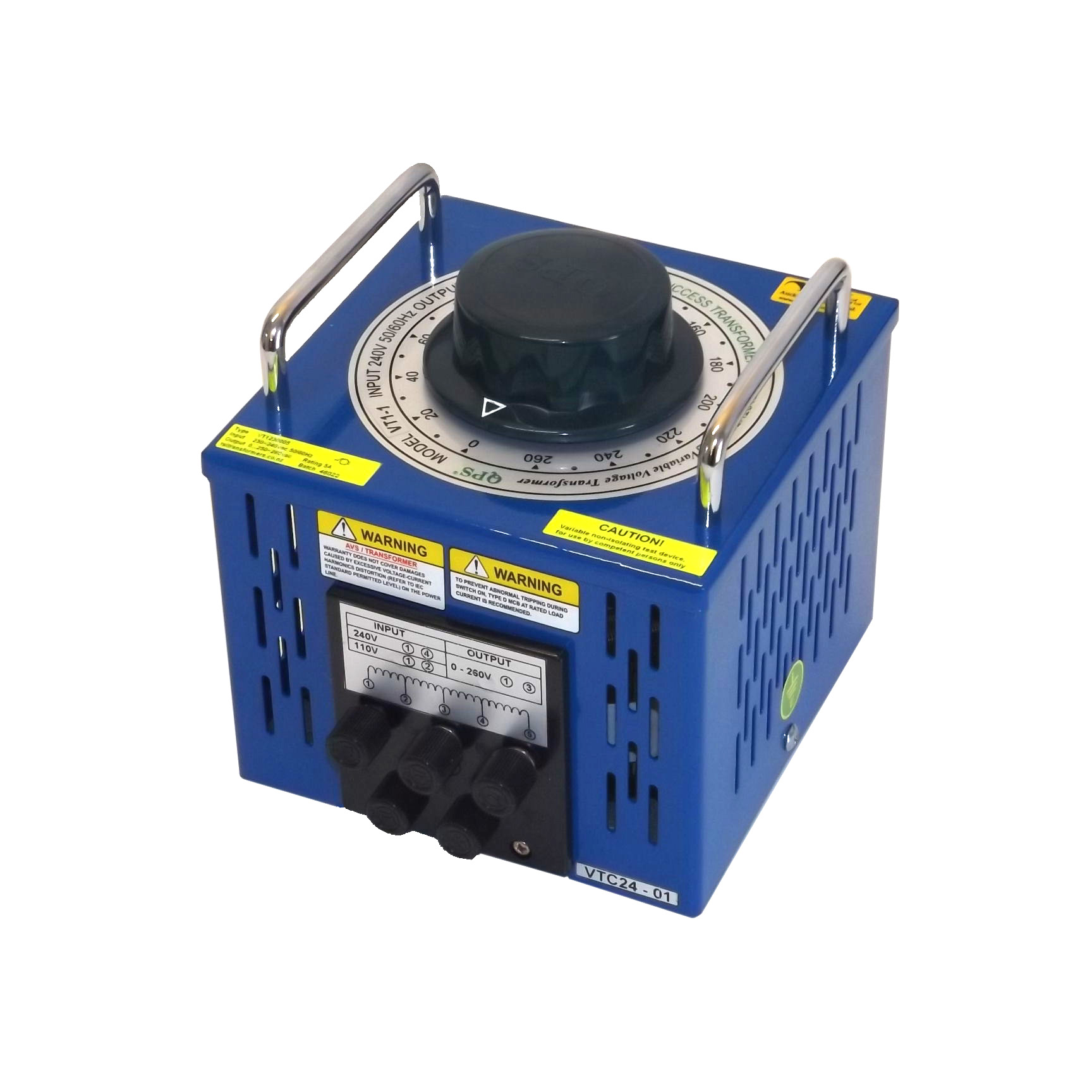

  • Intended applications: Variable transformer, “variac”.
  • Classification: Single phase, class 1, auto non-short circuit proof.
  • Protection: External short-circuit / overload protection required.
  • Construction: Enclosed metal vented IP40, epoxy powder coated.
  • Connections: Primary input terminals / secondary output terminals.
  • Secondary output continuously variable 0 to 250vac
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: IEC 61558.2.13
  • Dimensions: H. 180mm, L. 165mm, W. 165mm, 9kg

Description

Non stock indent item – Contact [email protected] for pricing and availability

Additional information

Weight 9 kg
Dimensions 165 × 165 × 180 mm

SDoC VT1230005-2015.pdf
