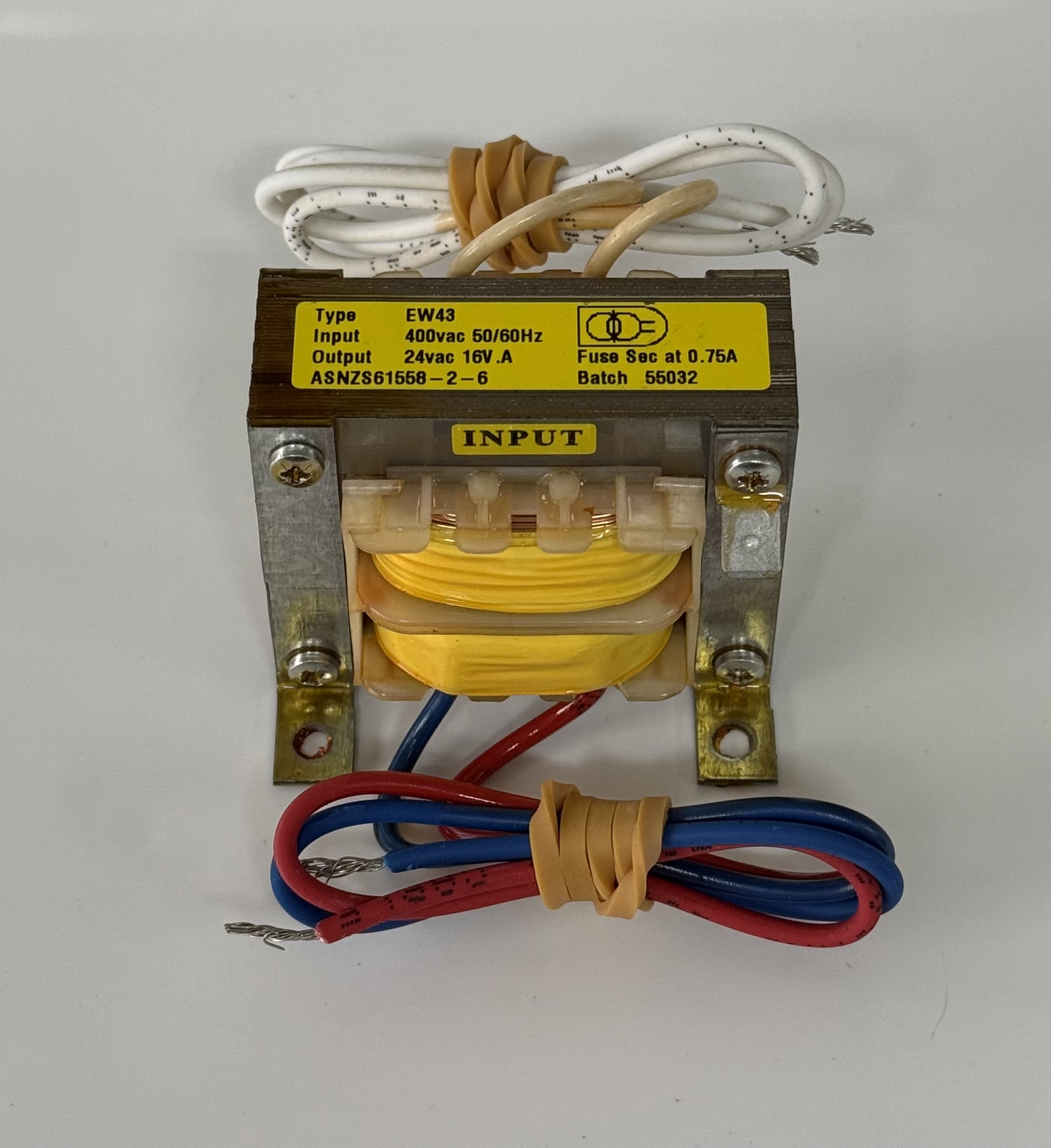

EW43 (400vac/24vac, 0.67A, 16V.A)

$ 78.00

Trade price New Zealand dollars + GST

EW safety isolating

  • Intended applications: Fixed associated control & power transformers.
  • Classification: Class 1, safety isolating non-short circuit proof.
  • Protection: External short-circuit / overload protection required.
  • Construction: Open frame IP00.
  • Connections: Primary input flying leads / secondary output flying leads.
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 61558.2.6 (IEC 61558.2.6).
  • Dimensions: h. 47mm, w. 57mm, d. 50mm, 0.4kg
  • DIN rail (symmetrical 35mm) mounting version available add prefix “DIN” to the product code when ordering i.e EW**DIN
  • New “L” bracketed mounting arrangement – orientation rotated 90° giving a lower profile & improved access to the mounting holes, includes an integrated 6.3mm Earth tab.
SKU: EW43 Category:
