- Intended applications: Fixed associated control & power transformers.
- Classification: Class 1, isolating non-short circuit proof.
- Protection: External short-circuit / overload protection required.
- Construction: Open frame IP00.
- Connections: Primary input flying leads / secondary output flying leads.
- Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
- Manufactured standard: ASNZS 61558.2.4 (IEC 61558.2.4).
- Dimensions: h. 96mm, w. 115mm, d. 87mm, 4.2kg
- DIN rail (symmetrical 35mm) mounting version available add prefix “DIN” to the product code when ordering i.e EW**DIN
- New “L” bracketed mounting arrangement – orientation rotated 90° giving a lower profile & improved access to the mounting holes, includes an integrated 6.3mm Earth tab.

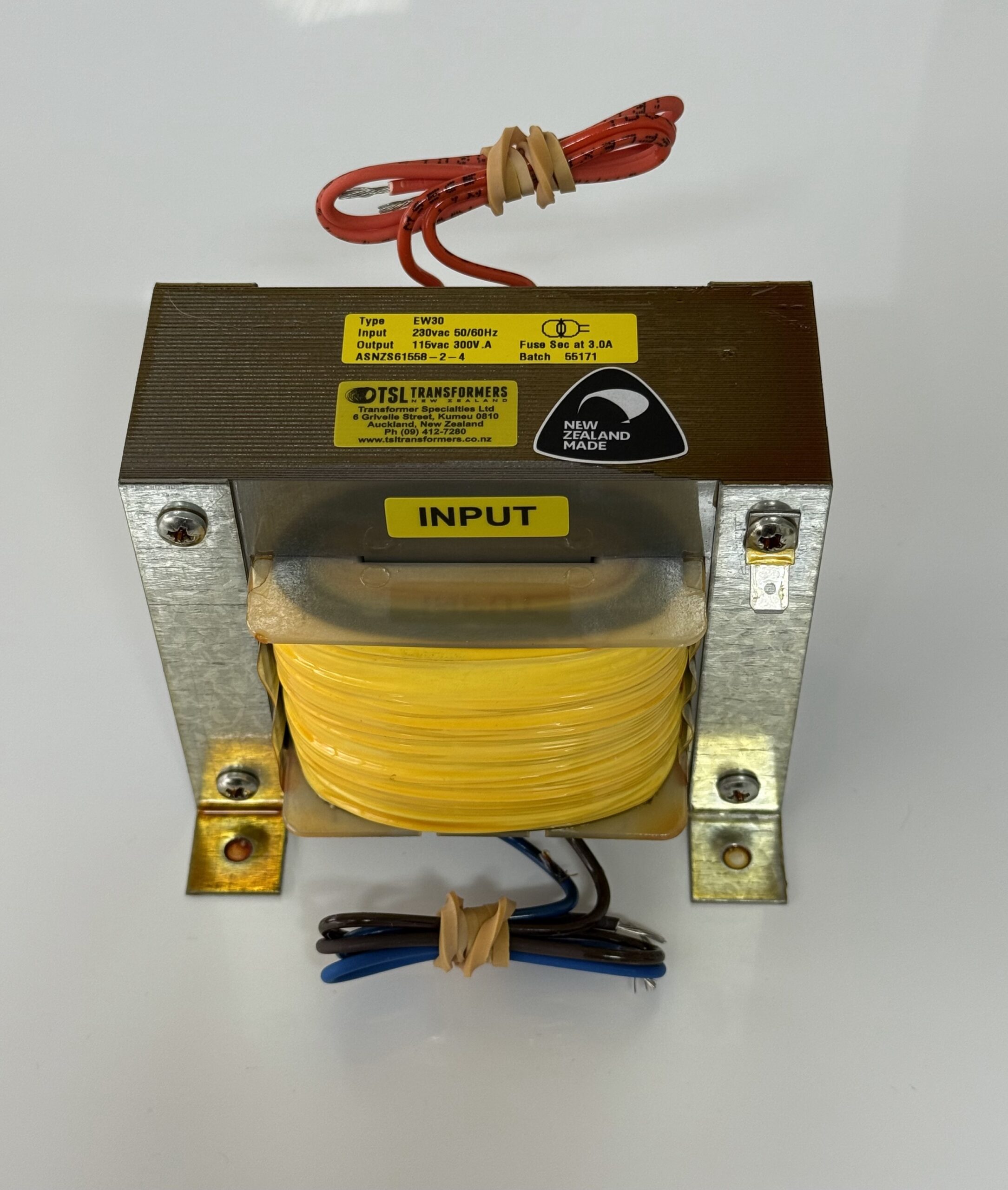

EW30 (230vac/115vac, 2.61A, 300V.A)
